Polywrap Winding Wire

COPTECH WIRE INDUSTRY (CWI) Makes Polywrapped submersible winding wires with its state of art manufacturing plant located at Coimbatore, India. Polywrapped wires manufacturing plant is equipped with latest automated machineries which produce the best quality products with stringent process and quality control activities.

Conductor

Conductor are made from electrolytic grade with more than 100% conductivity and > 99.95 % purity copper material. Copper rod is converted into solid wires and annealed for better flexibility , annealing is carried by Online annealing method . By giving the good annealing at conductor, we ensure the product flexibility at end application in terms of easy winding, shaping in Submersible product assembly , it saves end user assembly time , increase production, reduce reworks.

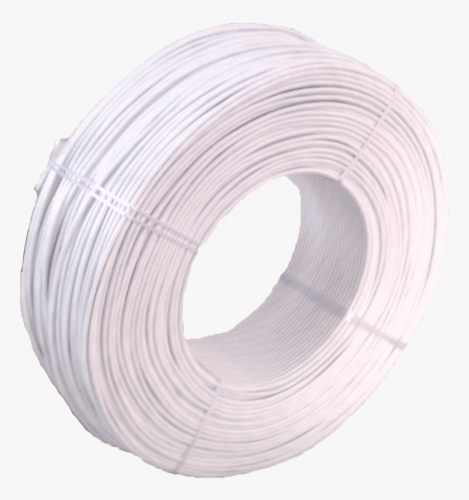

124-1242092_submersible-winding-wire-png-transparent-png

Insulation

Annealed copper conductor insulated with three layers of Film papers. The First layer over the conductor will be Polyester, 2nd layer Bi-axially oriented polypropylene opaque white, 3rd layer Bi-axially oriented polypropylene transparent films. All three films are sequentially wrapped over conductor and passed through oven for sealing together and form good insulation. The Raw material which we use for ,

  • Polyester films having excellent electrical, mechanical, Thermal properties.
  • BOPP Opaque white & transparent films will have , Excellent opacity, Gloss surface, Excellent hot take and heat seal strength, Excellent Mechanical properties , Good Barrier properties

We producing the winding wire in two sequence of insulation based on customer requirements,

1 st – Polyester, BOPP White, BOPP transparent
2 nd – BOPP transparent, BOPP White, BOPP transparent

Feature
1. High Insulation resistance
2. Low conductor resistance
3. Each coils tested at 3000 V & Less leakage current
4. Good mechanical strength
5. Moisture Resistant & Very Low water absorption
6. Resistant to oil, chemical
7. Easy for winding – Good annealed
8. High conductivity copper

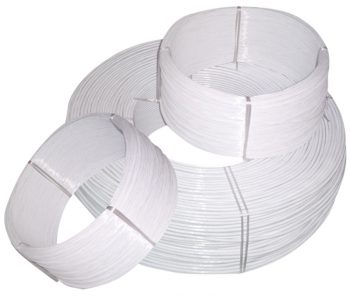

326536
Nominal Conductor Dia.in mm Lesser OD Wire in mm (COD) Nominal Standard OD wire in mm (NOD) Nominal Conductor Resistance at 20° C/km- Max
0.40
0.70
0.80
141.32
0.45
0.75
0.85
111.66
0.50
0.80
0.90
90.44
0.55
0.85
0.95
74.75
0.60
0.90
1.00
62.81
0.65
0.95
1.05
53.52
0.70
1.00
1.10
46.14
0.75
1.05
1.15
40.20
0.80
1.10
1.20
35.33
0.85
1.15
1.25
31.29
0.90
1.20
1.30
27.91
0.95
1.25
1.35
25.05
1.00
1.30
1.40
22.61
1.10
1.40
1.50
18.69
1.20
1.50
1.60
15.70
1.30
1.60
2.70
13.38
1.40
1.70
1.90
11.54
1.50
1.80
2.00
10.05
1.60
1.90
2.10
8.83
1.70
2.00
2.20
7.82
1.80
2.10
2.30
6.98
1.90
2.20
2.40
6.26
2.00
2.30
2.50
5.65

Coptech Wire Industry is a leading manufacturer in the field of Polywrap Winding Wire, renowned for its excellence and innovation. With a rich history spanning several decades, the company has solidified its position as a trusted supplier of high-quality winding wires to various industries. Their state-of-the-art manufacturing facilities utilize cutting-edge technology and adhere to stringent quality control measures, ensuring the production of durable and reliable Polywrap Winding Wire products. Coptech’s team of skilled engineers and technicians continuously strive to enhance the performance and efficiency of their wires, meeting the evolving demands of the market. As a result, Coptech has earned a reputation for delivering unparalleled products, earning the trust of customers worldwide. Their commitment to excellence, combined with a customer-centric approach, makes Coptech Wire Industry an industry leader in Polywrap Winding Wire manufacturing.
