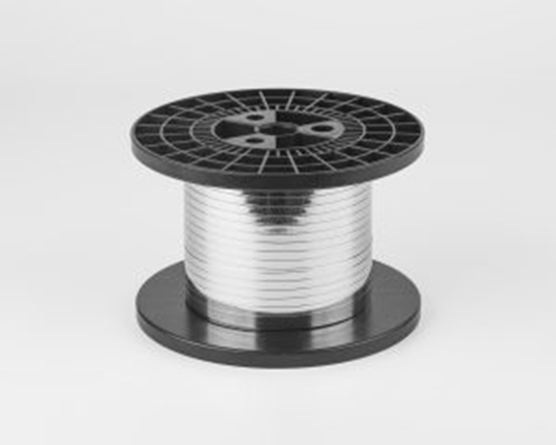

The Non- Reflective Bus Bar is a standard or conventional bus bar used in solar module , for interconnection , which will have good electrical conductivity, excellent solderability with plain surface and uniform coating thickness

It is not intentionally engineered to enhance light reflection back to the solar cell.

Technical Data

• Material: Plain copper Conductor
• Grade: ETP/OFC/OFHC/High conductivity Copper grade
• Purity: >99.90 – 99.99%
• Conductivity:≥100% IACS @20◦C
• Material composition: Sn 60% Pb40%
• Density : 8.4 – 8.5g/cm3
• Melting Point: 183 – 195 ◦C
• Overall Width (mm) : 4.0 – 8.0
• Thickness (mm): 0.15 – 0.45
• Resistivity (Ωmm²/m): ≤ 0.022
• Yield strength(Mpa): ≤ 125
• Tensile strength (Mpa): > 175
• Elongation(%): ≥ 25
